Model 327 K Mobile
The K series have been carefully designed to provide their owners with production and capabilities at the lowest possible investment cost, like any series in the Starmix Family, they are characterized by their strength and easy operation, however their structure and design allow to be highly competitive.

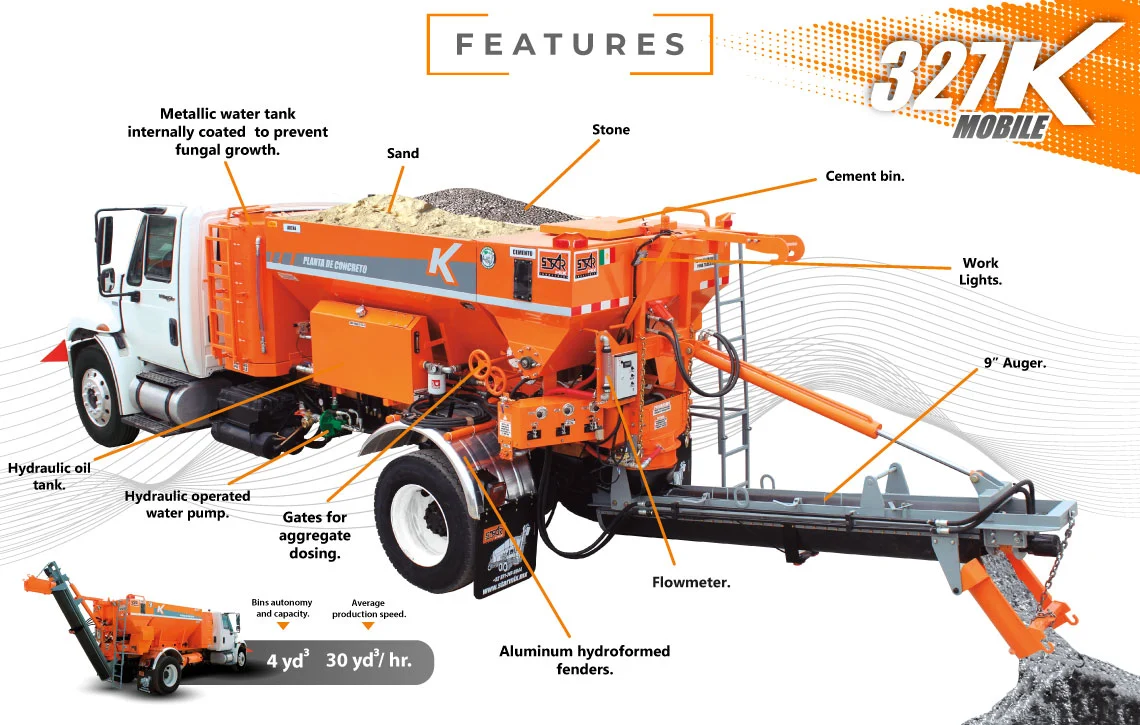

The Model 327 K Mobile offers a streamlined solution for on-site concrete production, delivering up to 30 yd³ per hour. Its compact design includes separate hoppers for aggregates and a 1.2-ton cement capacity, ensuring accurate mixing. Ideal for urban projects or sites with limited space, this mobile batching plant combines convenience with performance.
Technical Specifications
Average production capacity 25m3/hour. 1m3/2.4 Minutes
Hopper capacity for coarse aggregates of 2.4 cubic meters
Fine Aggregates Hopper Capacity 2.3 cubic meters
Cement Hopper 1.2 Tons
Metal water tank with internal antifungal coating

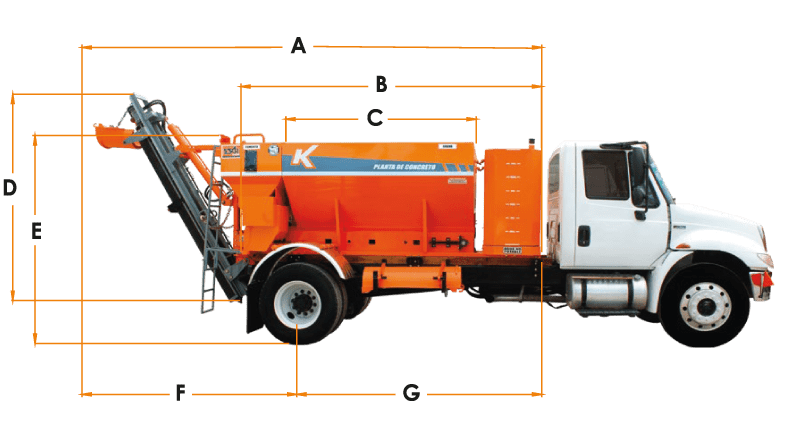

Dimensions
A | 228.07 in / 5.79 m
B | 149.19 in / 3.78 m
C | 94.45 in / 2.39 m
D | 111.28 in / 2.82 m
E | 101.63 in / 2.58 m
F | 126.44 in / 3.21 m
