850 S Model
The main characteristic of the S series equipment is
its great structural strength; they have modular armed bodies, so they can be
completely disassembled in its structural parts, with the great benefit of making
maintenance easy, and greatly extending their useful life. They are recommended for working in
though conditions such as in steep ways, mining, coasts or places with salinity in the environment
or for any company with a long-term vision that values quality.
The Starmix 850-S Mobile Concrete Plant is engineered for high-volume, on-site concrete production, delivering up to 60 cubic yards per hour. With an 11 cubic yard capacity and robust design, it's ideal for large-scale construction projects requiring efficient and reliable concrete mixing.

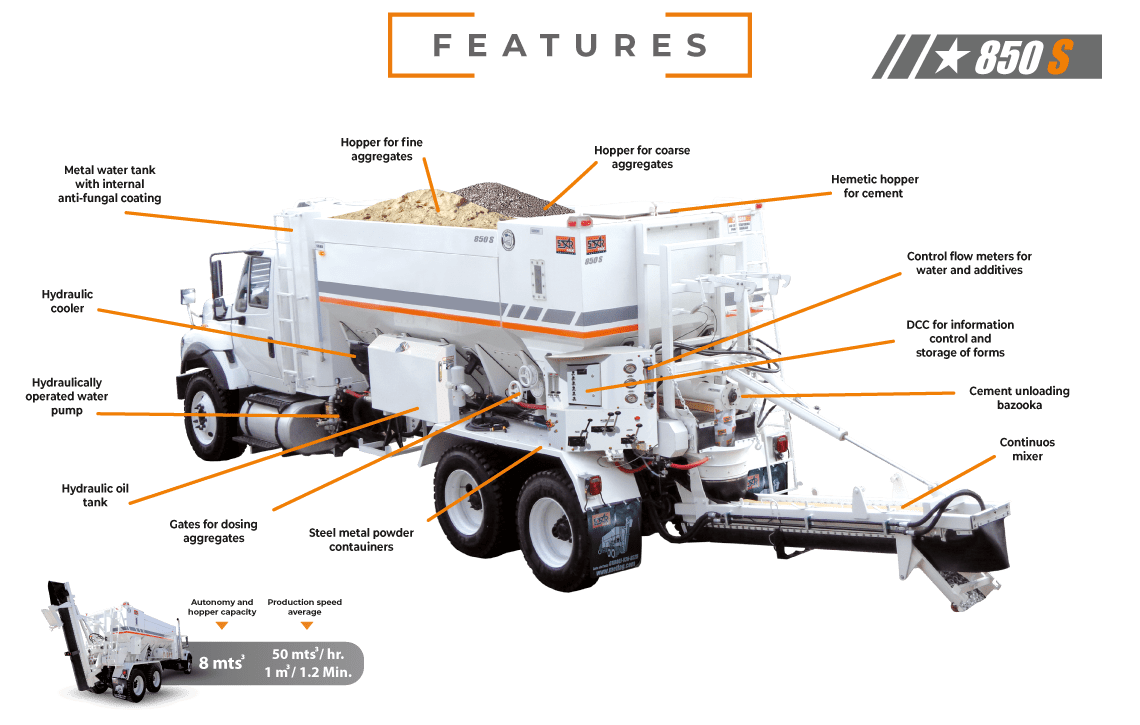

Technical Specifications
3,000 liter metal water tank with anti-fungal interior coating and KNAPPCO metal lids
Polyurethane white paint
3.5 Ton cement hopper
Hydraulic cooler panel with fan
Hopper capacity: 8 cubic meters
Low and high volume additive systems
Water system with hydraulically operated pump
Automatic lubrication system for conveyor chain
Hydraulic cooler panel with fan
Digital measurement system DCC (Data Control Commander)

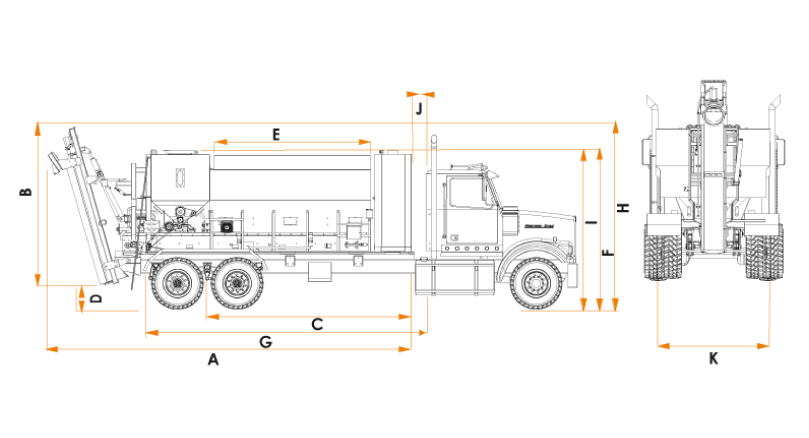

Dimensions
A | 301 in / 7.65 m
B | 133.5 in / 3.39 m
C | 167.7 in / 4.26 m
D | 21.3 in / 0.54 m
E | 124.5 in / 3.16 m
F | 130.8 in / 3.32 m
G | 235.2 in / 5.97 m
H | 150.8 in / 3.83 m
I | 130.4 in / 3.31 m
J | 10.62 in / 0.27 m
K | 93.5 in / 2.37 m
