750 L Model
The L series is designed to provide functionality, they are mainly recommended for companies that sell or carry out medium to high volumes in concrete.
They have inherited many of the strengths of the S series, although its structure is
monolithic and its components are conventional, it offers a friendly operation.
Built for demanding construction sites, the 750 L Volumetric Concrete Mixer features a 10 YD³ aggregate bin for high-volume, on-site concrete production. Its durable frame and advanced control system deliver consistent mix quality, while its mobile design ensures easy relocation between job sites, delivering flexibility, speed, and efficiency in concrete mixing.

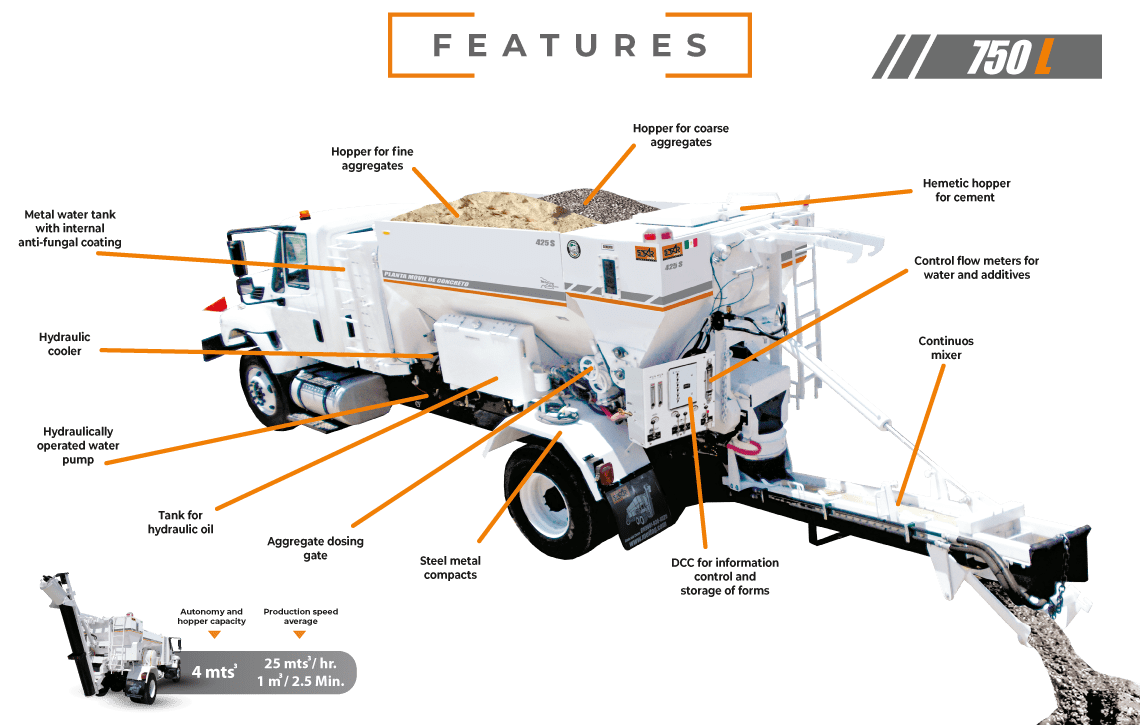

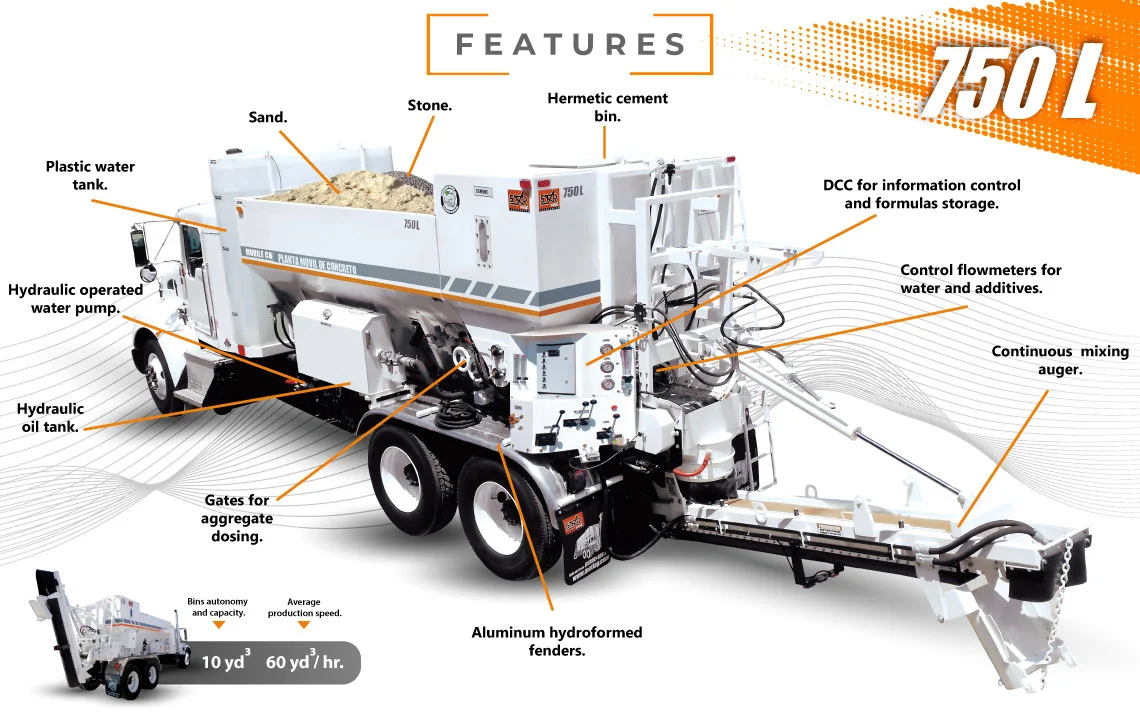

Technical Specifications
2,000 liter polypropylene water tank
3.5 Ton cement hopper
Hydraulic cooler panel with fan
Hopper capacity: 7 cubic meters
Low and high volume additive systems
Water system with hydraulically operated pump
Automatic lubrication system for conveyor chain
Digital measurement system DCC (Data Control Commander)

Dimensions
A | 311 in / 7.9 m
B | 138 in / 3.5 m
C | 169 in / 4.3 m
D | 15.4 in / 0.4 m
E | 132 in / 3.3 m
F | 132 in / 3.3 m
G | 199.2 in / 5 m
H | 142.6 in / 3.6 m
I | 129.5 in / 3.2 m
J | 10.6 in / 0.26 m
K | 93.5 in / 2.37 m
